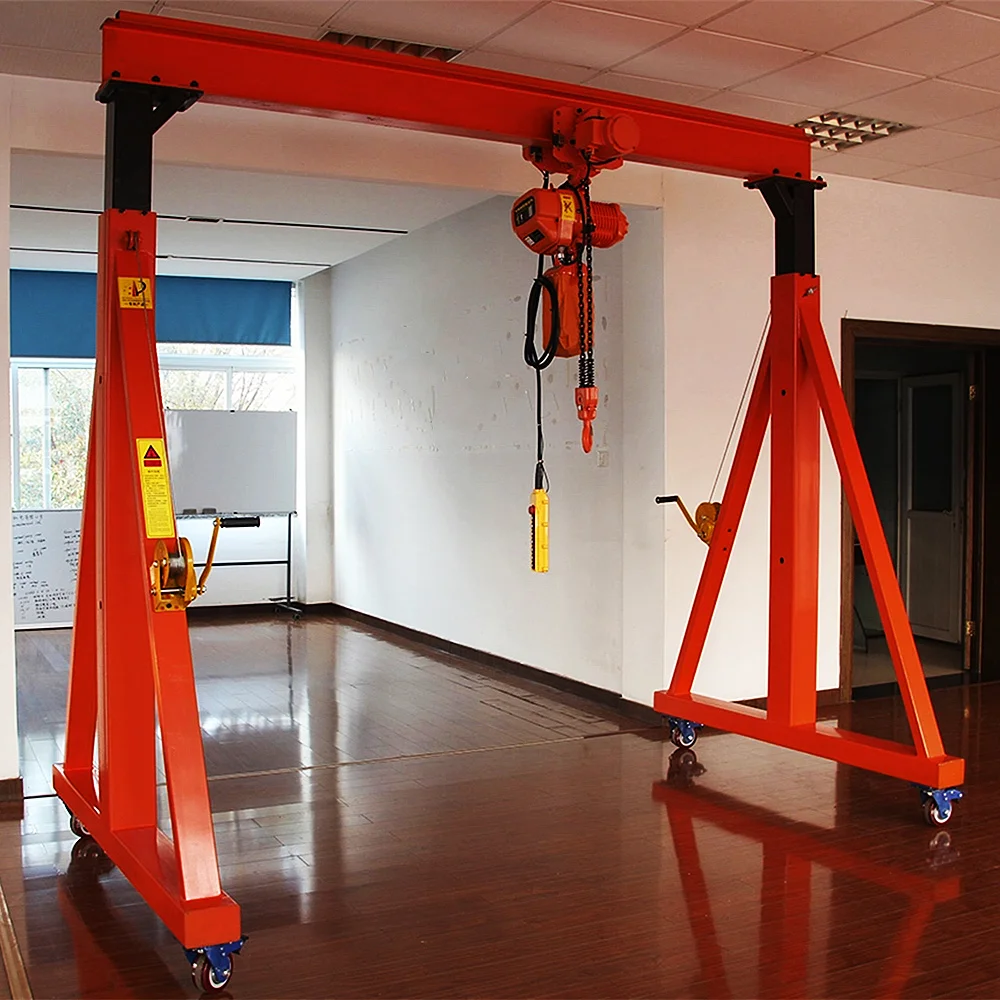

Name: Motorized Portable Gantry Crane Simple Electric Gantry Crane
Brand: Shandong Xuteng Intelligent Equipment Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Description

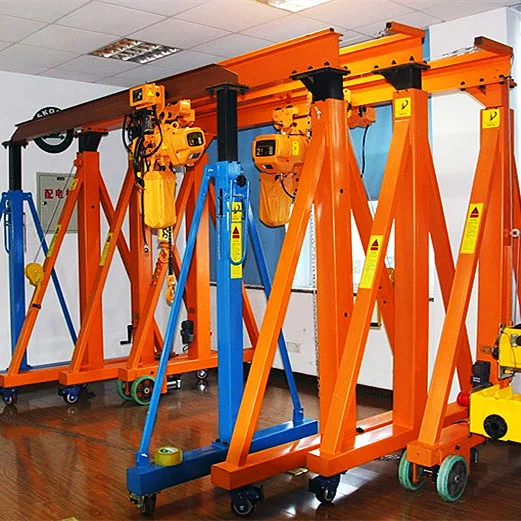

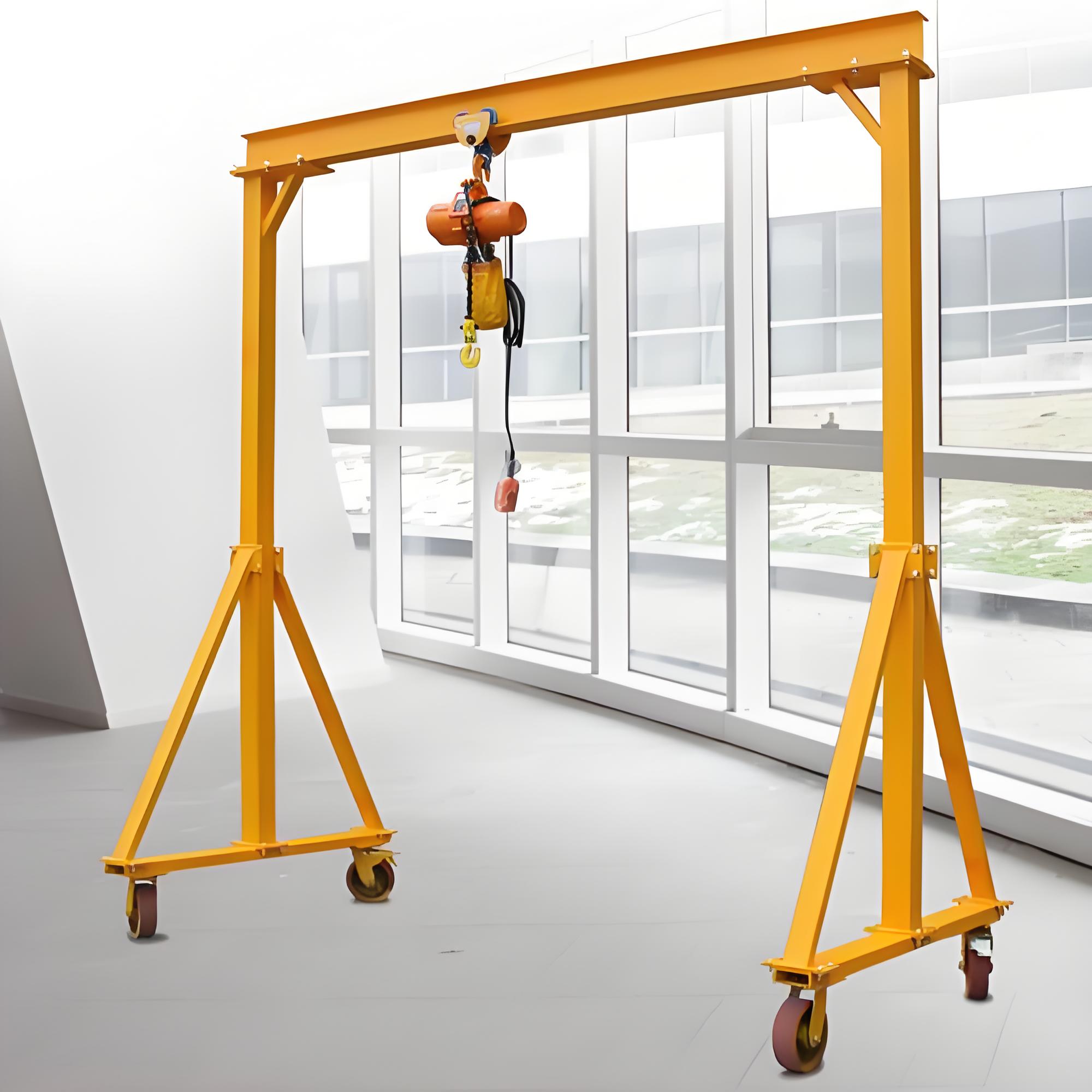

10T Portable Gantry Crane with Detachable Legs and Chain
Hoist forEasy Relocation and Setup Equipment Lifting

Modular Protable Crane System Specification

Load Capacity	0.5-10Ton
Span	1 ~ 9 m (customized)
Lifting Height	3~10 m
Operation Method	Electric/Manual
Voltage	380v 50hz 3phase /Customized
Working Class	A3

Rate load (kg)	Rail No	Max Crane Span (mm)	Beam cantilever (mm)	The distance of supports (mm)	Support width (mm)
250	I-N	2500	600	1900	1200
250	I-N	10000	600	9000	1200
500	II-N	2500	600	1800	1200
500	II-N	10000	600	9000	1200
1000	III-H	3000	600	2000	1200
2000	III-H	9000	600	8000	1200

Simplifying Complex Problems With Our Light Workstation Crane System

By leveraging the versatility and adaptability of Modular crane system, businesses can streamline their material handling processes and overcome complex logistical hurdles with ease. This type of crane system has been embraced and utilized by companies with a fundamental focus on swift and coordinated material transportation, making it a common sight in various manufacturing facilities and warehouses. Our pre-assembled components designed to handle a multitude of tasks, allows for customizable lifting solutions. Our range of components includes turntables, swiveling transfer points, and various other parts. Modular overhead crane can be configured as a single-girder or double-girder system, and it can be operated manually or with electric controls.

FEATURES AT A GLANCE

Flexibility in Layout Design

- More options for profiles, switches, curves, and rotation

- Ability to accommodate larger spans
Short Assembly Time
- Pre-designed, assembled, and wired components

- Optimal suspension and connection methods

Low Maintenance Cost

- Minimal repair work

- Long lifespan and robust structure of lifting equipment

Advantages:

- Achieving flexible operations and
excellent performance through modular design.

WHY CHOOSE OUR MODULAR CRANE SYSTEM

Significantly Reducing the Cost	Modular Design	Minimize Operational Noise
No Need for Workshops Changes	Precise Load Positioning	Low Failure Rate
Minimizes Equipment Idle Time	80% Energy Reduction	Maintenance-Free Track Systems

WEIYUANCRANE SUCCESSFUL CASES

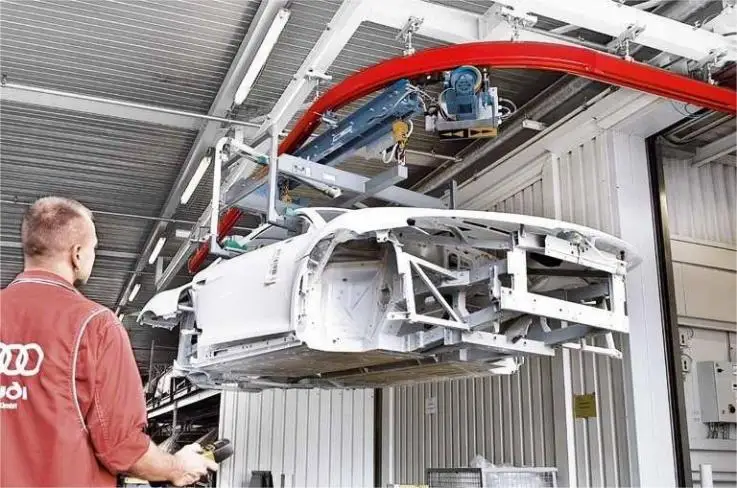

AUDI GROUP GERMANY

▪ Ensure safe, reliable, and convenient transportation of the painted Audi R8 body from the body manufacturing line to the assembly line.

▪ Connect material transportation between the external body warehouse and the assembly line.

▪ Protect workers from the ventilation airflow in the gate area.

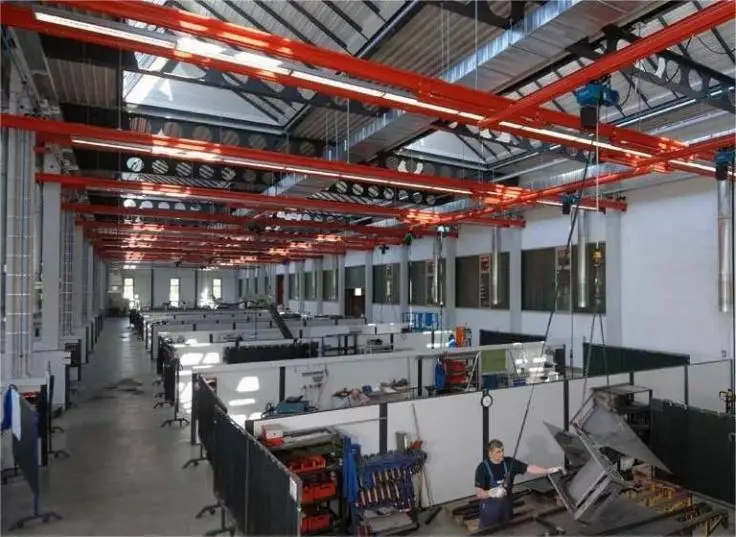

KNOLL MASCHINENFABRIK GMBH GERMANY

▪ Simplified positioning of welded parts

▪ Optimized staffing at welding stations

▪ Overhead handling solutions

▪ Reduced forklift traffic

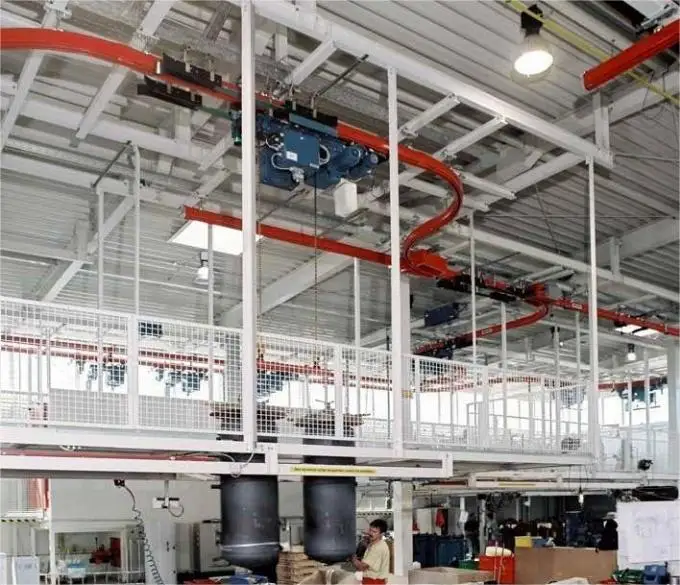

AUSTRIA EMAIL GROUP AUSTRIA

▪ Automated handling, higher process reliability ▪ Significantly improved ergonomics ▪ Thanks to the optical anti-collision system, a safe distance between cars can be maintained ▪ Due to its modular design, the equipment is highly flexible and can be adjusted at any time. Adaptation to changed production processes ▪ Production capacity increased by 25%

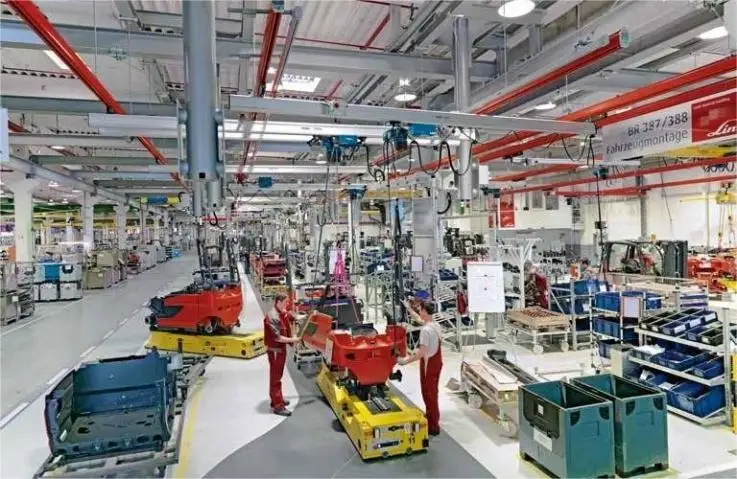

LINDE MATERIAL HANDLING GERMANY

▪ Assembly with fixed cycle times on a circular route with several workstations

▪ Establish a flexible production structure

▪ There is no need for high additional costs when converting production lines into assembly line mode.

Product packaging

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.

FAQ

Q.Can i have a price?
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What’s your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q.Do you have engineer oversea installation service?
Yes; We have;
Q.What kinds of products do you have?
All kinds of industrial electric/hydraulic/diesel winch (especially non-standard); Overhead Crane; Gantry Crane, Electric
Hoist;Screw Hoist; etc.
Q.If we need urgently, can you delivery soon?
After we confirming the parameters and sign the order, we will give priority to the emergency order to meet your needs;
Q.Do you offer after-sales service?
We have after-sales team to support you.
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these
details so that I can quote the most cost-effective option.Q.What’s your package?
Safest package chosen to protect your goods during transportation.
Q.How can I pay to you?
Alibaba pay、Alibaba Trade Assurance、T/T、L/C

Dear friends, in order to offer you the suitable crane, please provide the following parameters:
Could you supply your workshop's layout?
What goods will you lift?
What is the crane net working time per day?
Whatis the lifting height?
What is the span?(center distance between two running rails)
What is the loading capacity?
